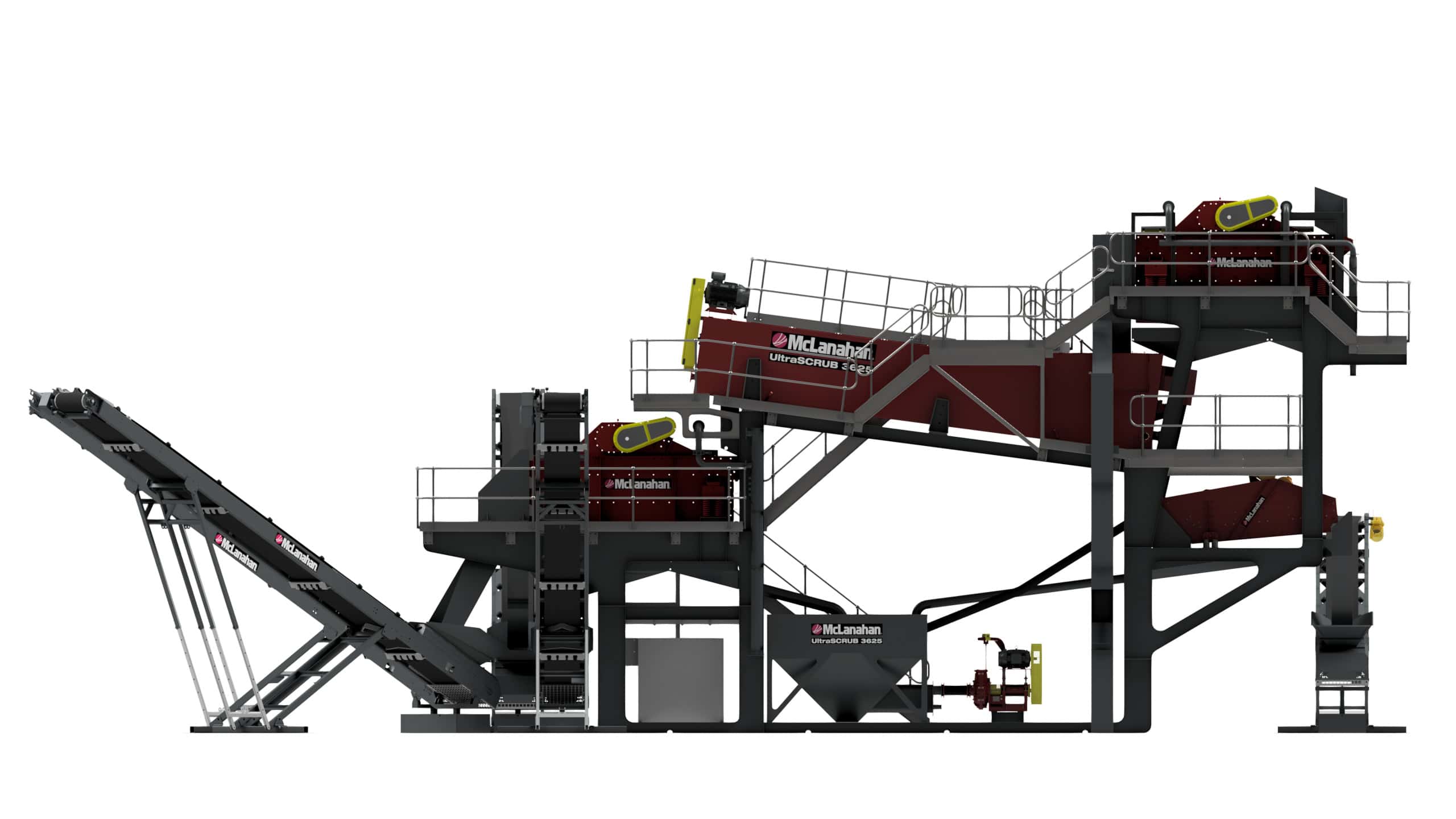

The McLanahan UltraSCRUB Modular Scrubbing System is designed to efficiently remove adhered and difficult-to-process materials, including high-plasticity clays, from valuable aggregate resources.
Engineered for high-performance attrition scrubbing and final material sizing, the UltraSCRUB provides an effective solution for recovering material that would otherwise be classified as waste.

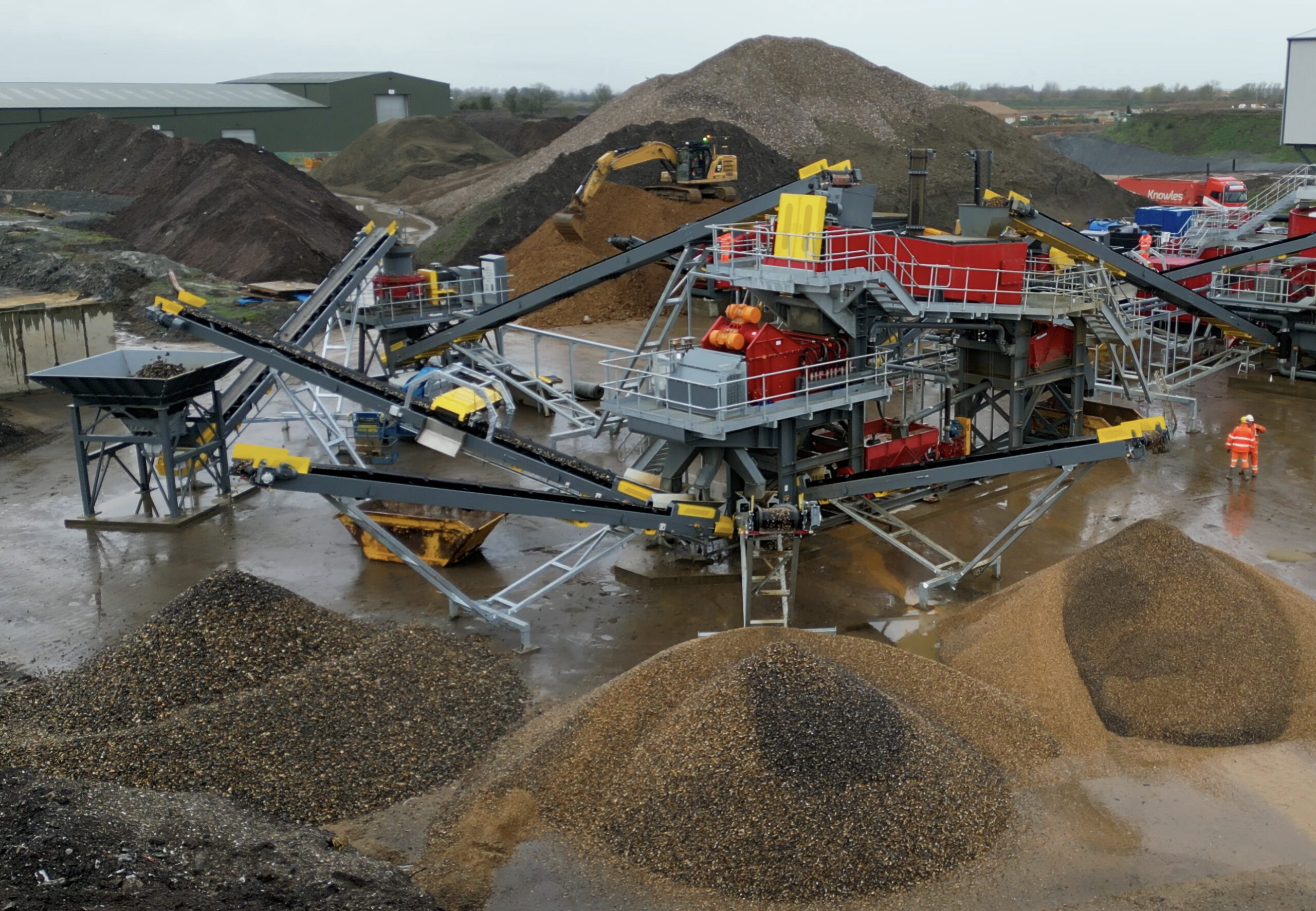

Delivered to site in convenient containerised modules, the UltraSCRUB system offers shorter lead times, fast installation, and simplified transportation, helping producers reduce project timelines and improve operational flexibility. Its modular design allows for rapid deployment and easy integration into existing or new processing operations.

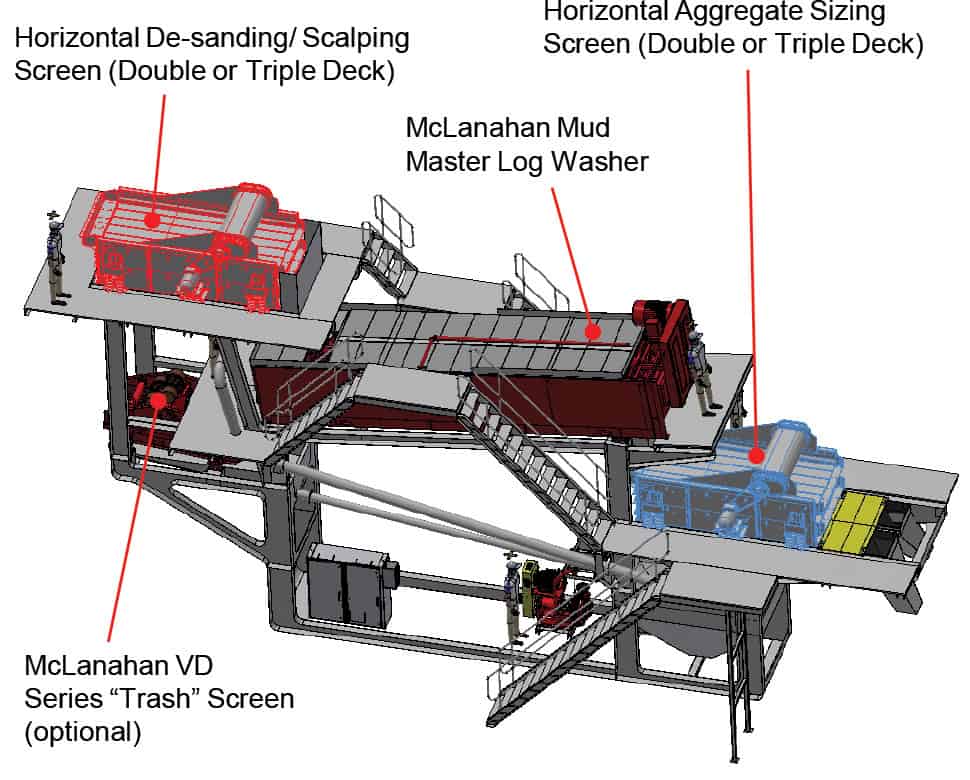

When combined with other equipment from McLanahan’s modular processing range — including the UltraCRUSH, UltraSCREEN, and UltraWASH systems — producers can create a complete modular aggregate processing plant capable of transforming previously unusable material into valuable saleable products.apable of transforming previously unusable material into valuable saleable products.
Features & benefits:

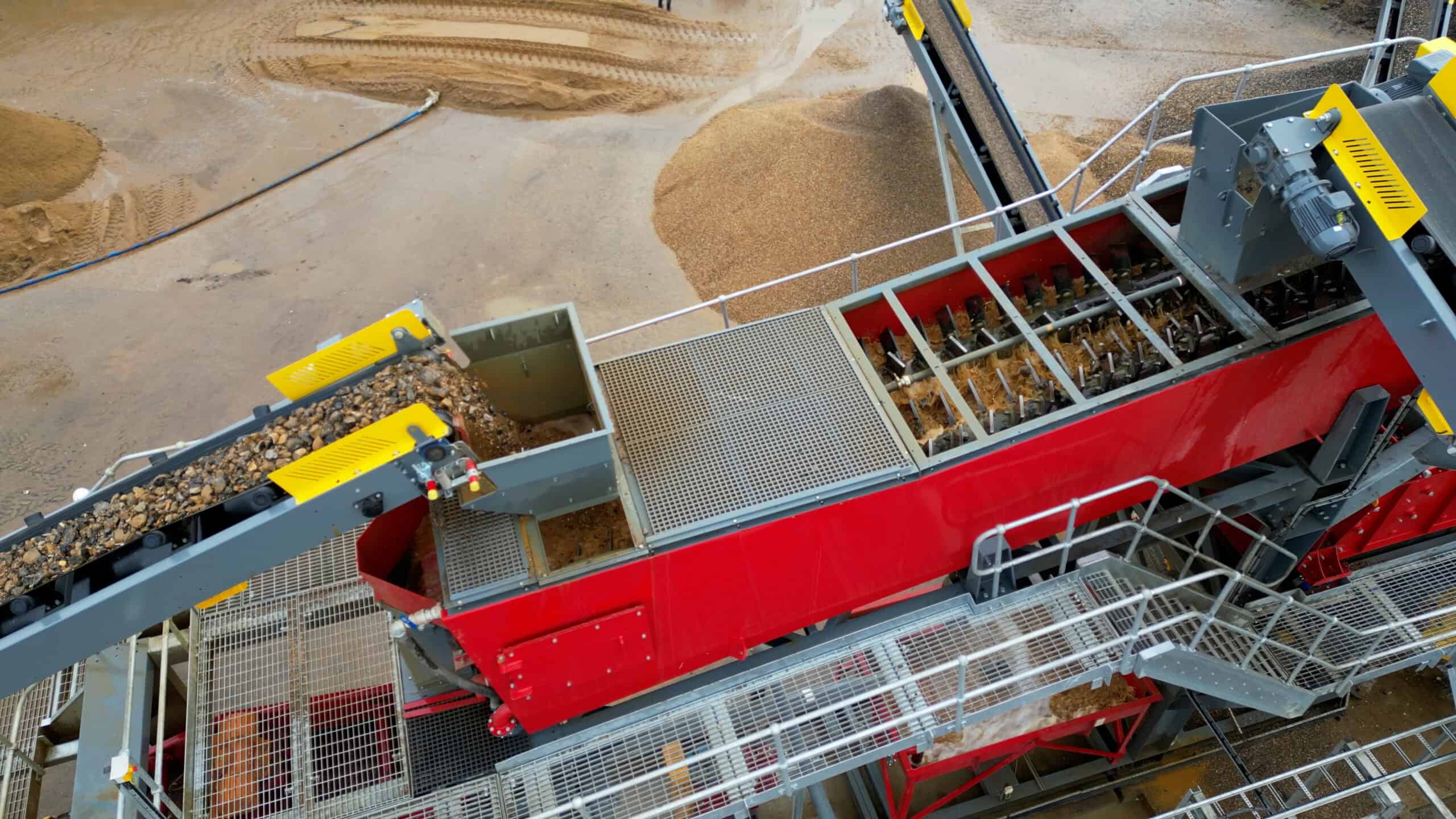

- Material and water are introduced at the feed end of the unit.

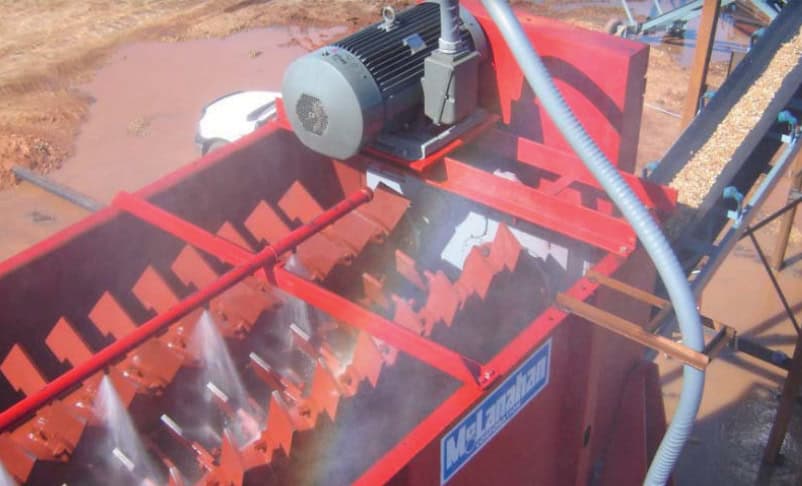

- Paddles provide scrubbing and agitation
- This scrubbing, along with rising current water, breaks down and washes off light coatings and light clays
- Organics removal (i.e. wood, leaves, etc.)
- The “cleaned” product is then conveyed to the discharge end of the box

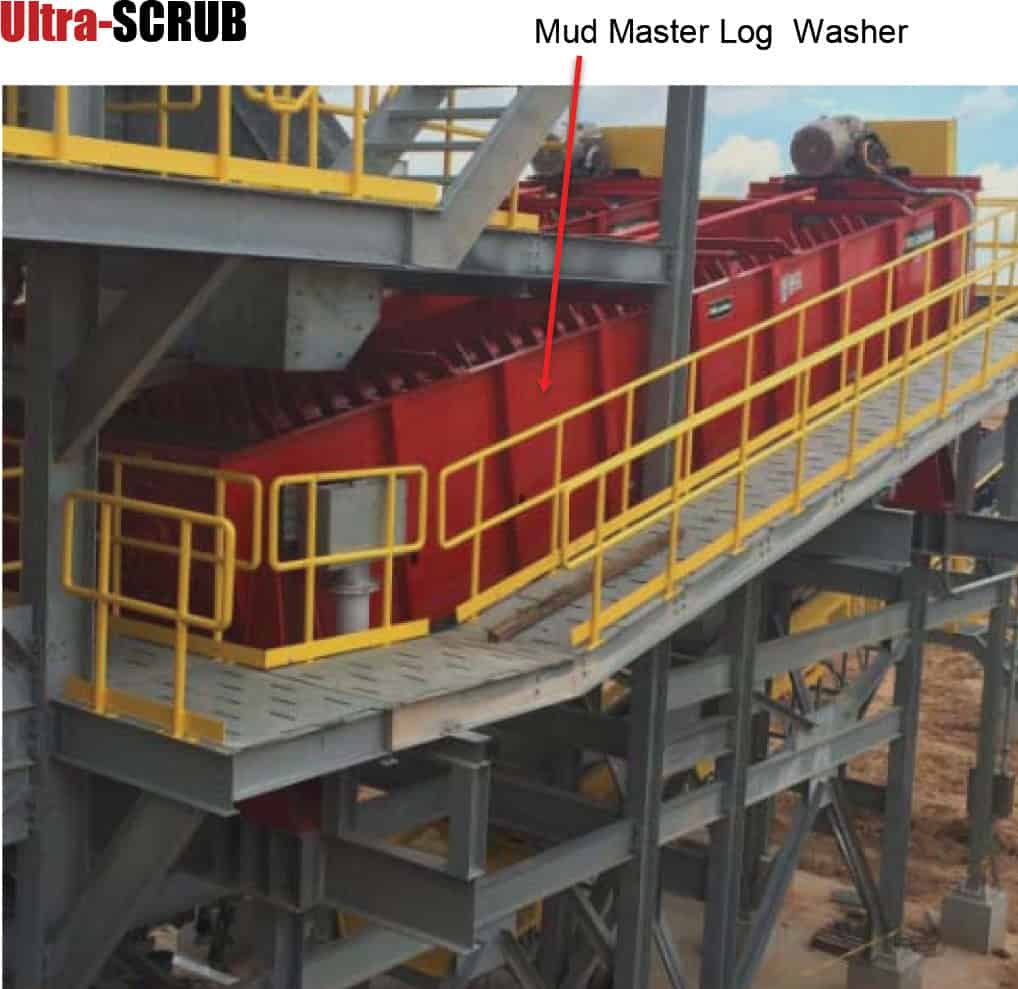

- A rinse screen typically follows the Log Washer 2, 3 or 4 Aggregate Products
- With decanting screen (optional), log washer, horizontal rinsing screen, trash screen (optional) sand transfer sump and pump, transfer/ product conveyors.
The Ultra-SCRUB range comprises:
LW3625 – up to 100/200mtph
LW3830 – up to 200/400mtph
