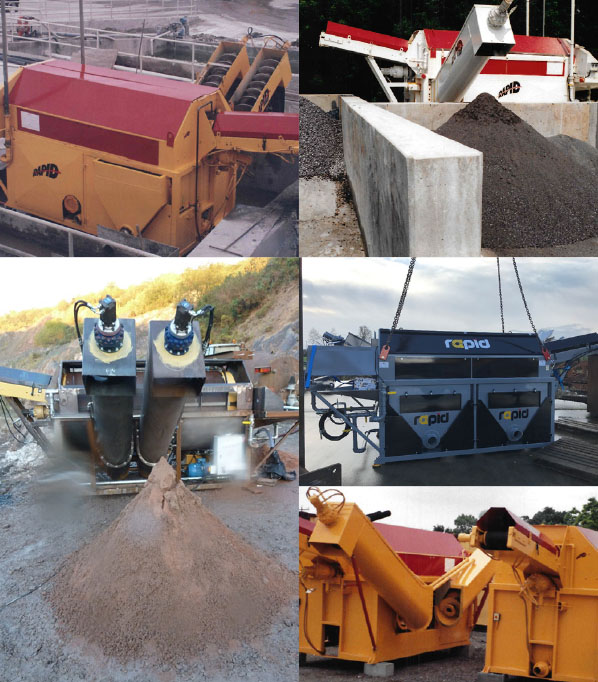

Reclaiming unit for the recovery of unused concrete. Recovers washed-out aggregate, sand and grey water.
One part, rugged, all-welded mild steel fabrication of rectangular box section and mild steel plate. Complete with tray feeder plate and safety guards.
Steel wire mesh supported by a steel frame. The drum is 1.3m diameter x 2.7m long and is powered by a hydraulic motor and gearbox drive.
By water jets at fixed positions including final rinsing of sand in the dewatering screws and of aggregates on the aggregate conveyor.
2No 400mm diameter de-watering sand screws fitted with geared hydraulic drives.
Channel section with head drum powered by hydraulic geared motor.
Twin water giraffes to load recycled/ clean water into truck mixers before cleaning.
Electric motor 7.5 kW (10HP) coupled with hydraulic pumps to drive the drum screen, sand screws and conveyors, controlled with a safety relief valve.
This machine will process up to 20 m3 per hour of slurried concrete. (Assuming continuous feed of materials).
Integral control panel housing control all valves etc. providing start stop and emergency stop buttons to each side of the Reclaimer unit.
The system incorporates an overload automatic shut off valve which will close down the feed to the machine when the machine is overloading. When this happens the feed to the machine will be automatically increased again as the surge of materials gets processed.
