1300 Maxtrak

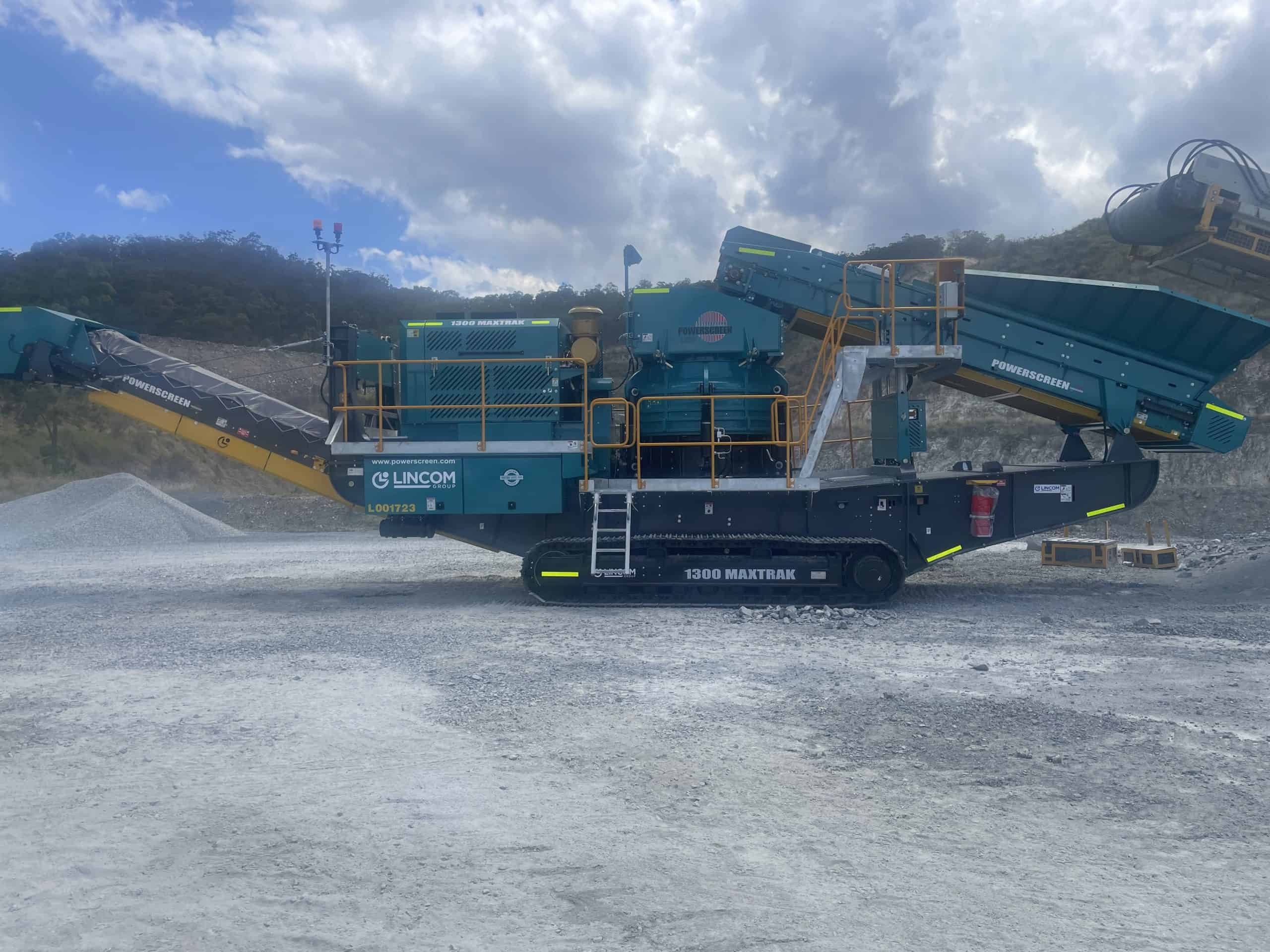

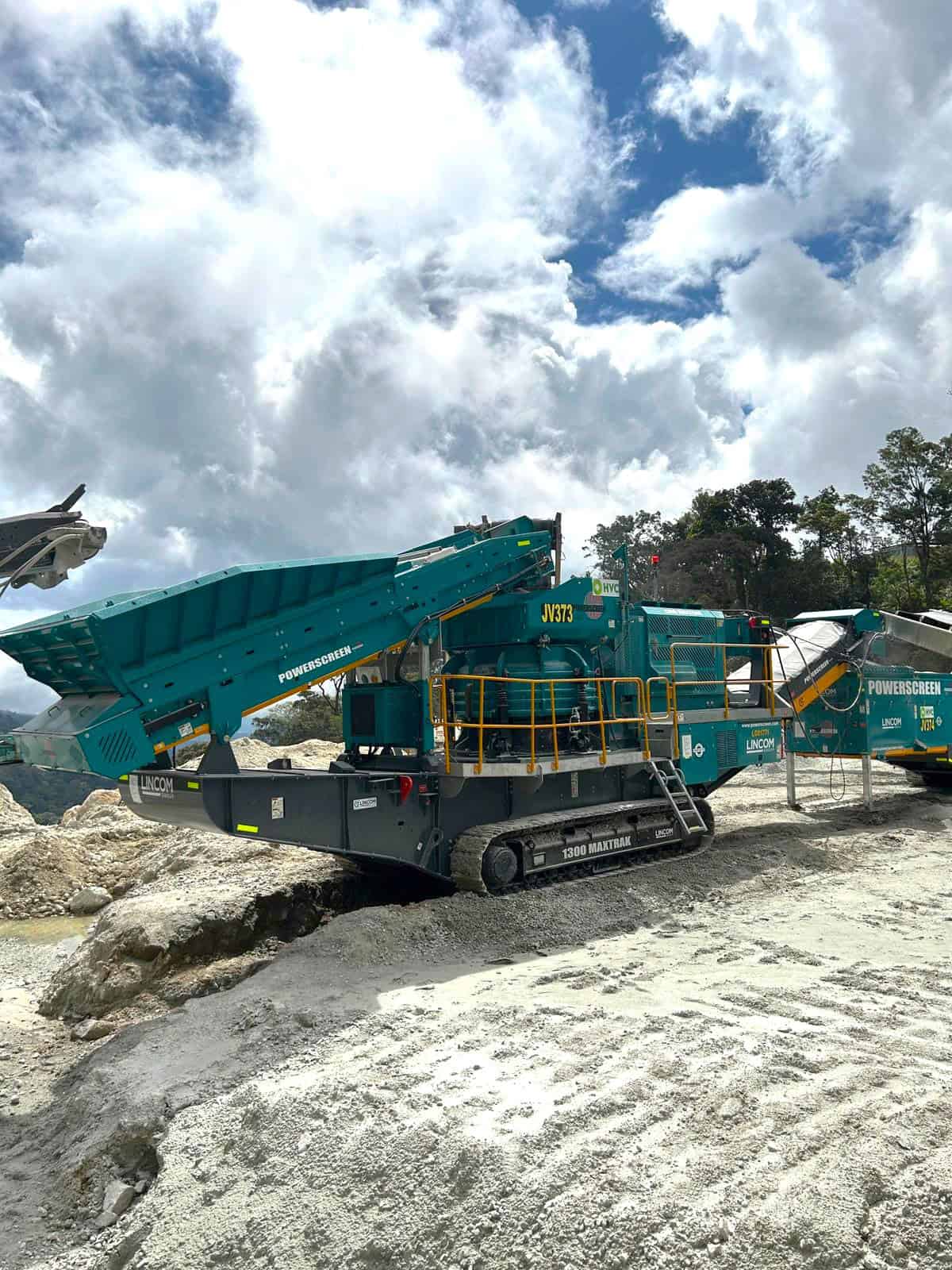

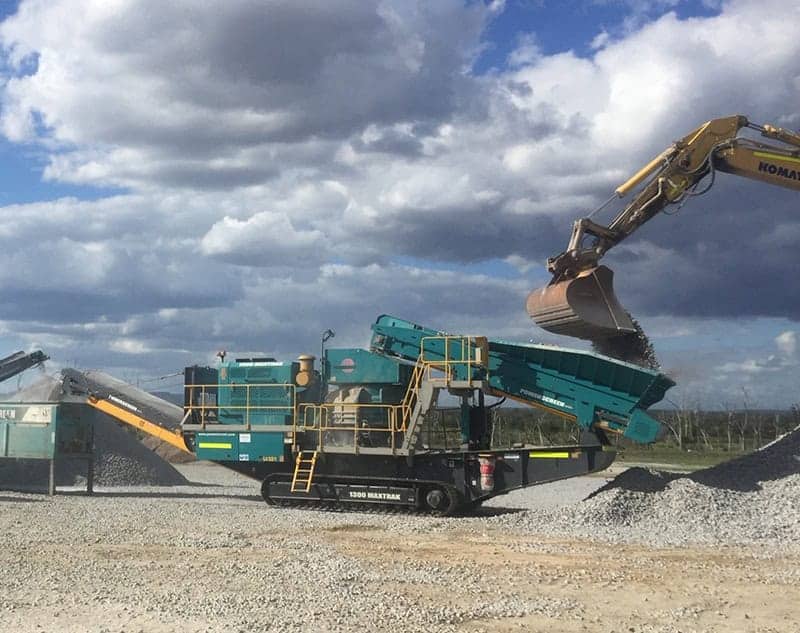

The Powerscreen® 1300 Maxtrak is a medium to large sized track mobile cone crusher which is ideally suited to secondary applications such as taking an “all in-feed” from a primary crusher. Based around the 1300 Automax® cone crusher, the plant excels in the production of sub-base or aggregates, providing excellent cubicity, throughput and reduction ratios.

SKU: 1300 Maxtrak Categories: ,

Description

The Powerscreen® 1300 Maxtrak is a medium to large sized track mobile cone crusher which is ideally suited to secondary applications such as taking an “all in-feed” from a primary crusher. Based around the 1300 Automax® cone crusher, the plant excels in the production of sub-base or aggregates, providing excellent cubicity, throughput and reduction ratios.

Specifications

1300 Maxtrak
Weight 47,965kgs (105,745lbs)

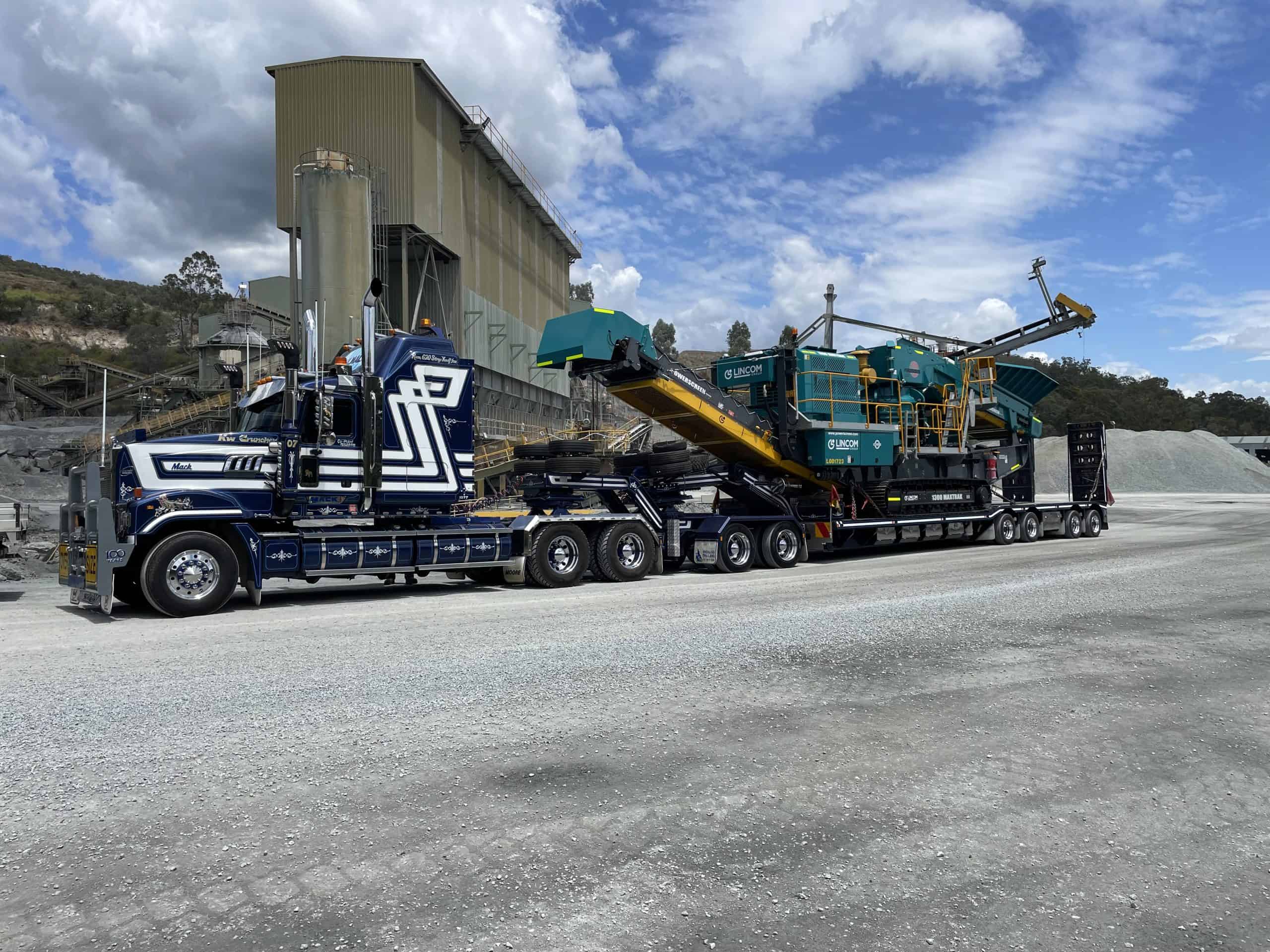

Transport Length 15.35m (50’4″)
Transport Height 3.85m (12’8″)
Transport Width 3.0m (9’10”)
Working Length 15.5m 50’10”)
Working Height 4.70m (15’5″)
Working Width 3.85m (12’8″)
* All information subject to machine configurations & specifications ordered.
** Lincom reserves the right to change specifications without prior notice.

Features & Benefits

  • Output Potential: up to 350tph (386 US tph)
  • Renowned Automax® crusher technology
  • Excellent product shape
  • High reduction ratio
  • Hydraulic crusher setting
  • Cone overload protection
  • Heavy duty chassis and track frame
  • Metal detector
  • Cone feed box level control to maintain choke feeding
  • Dust suppression system
  • Economical to operate with a highly fuel efficient direct drive system
  • Remote control via umbilical



Options

  • Feed hopper extension plates
  • Feed hopper level sensor
  • Concave: Autosand, medium coarse
  • Product conveyor belt weigher
  • Electric refuelling pump
  • Hydraulic water pump
  • Radio remote control
