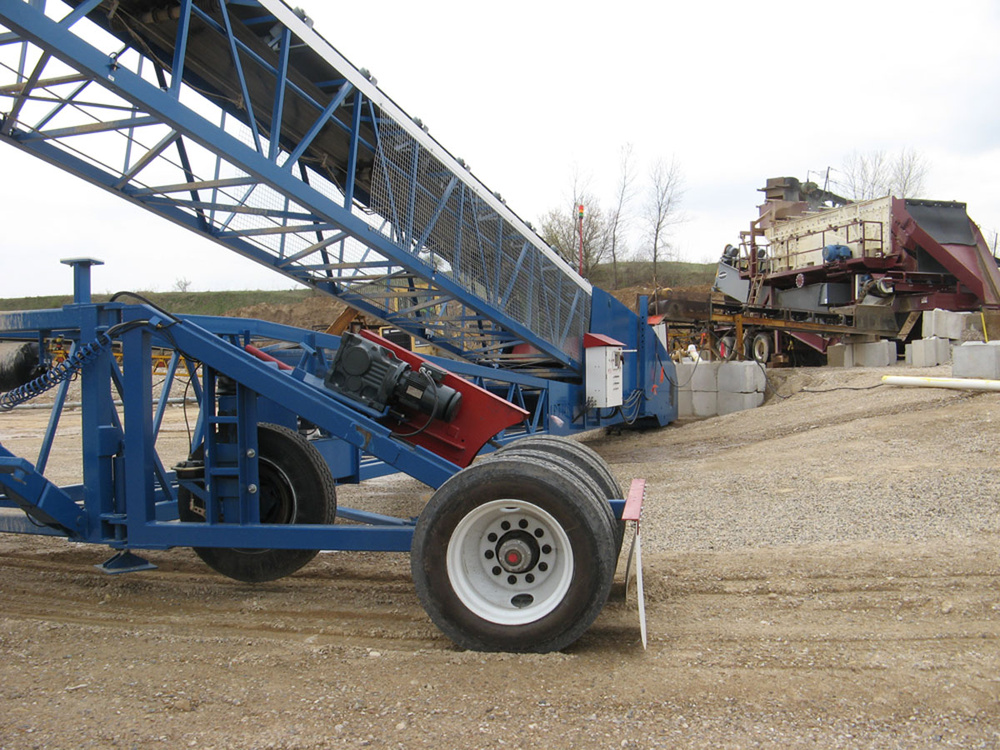

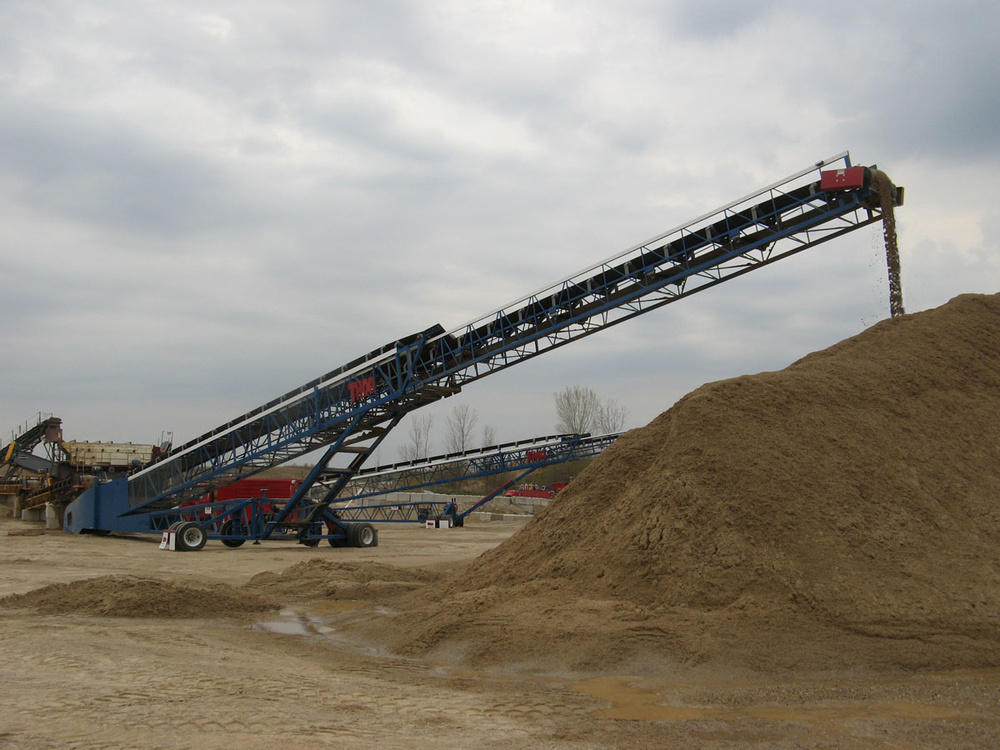

ThorLoPro – Low Profile Telescopic Portable Radial Conveyor

Thor’s patented low profile telescopic stacker has the lowest feed height in the industry while maintaining a large truss depth for strength and stability.

SKU: ThorLoPro – Low Profile Telescopic Portable Radial Conveyor Category: Tag:

Description

Thor’s patented low profile telescopic stacker has the lowest feed height in the industry while maintaining a large truss depth for strength and stability.  These conveyors are highway portable.

ELIMINATE SPILLAGE: The patent-pending low profile assembly design enables the feed angle to remain constant, thus eliminating spillage.

MAXIMUM VERSATILITY:  Lowest feed height in the industry provides maximum versatility.

CUT COSTS: Eliminate the need for additional conveying equipment.

Specifications

LPT120x36-0500/0800 36in 120ft 500/800 stph
LPT140x36-0500/0800/1000 36in 140ft 500/800/1000 stph
LPT150x36-0500/0800/1000 36in 150ft 500/800/1000 stph
LPT140x42-1200/1500 42in 140ft 1200/1500 stph
LPT150x42-1200/1500 42in 150ft 1200/1500 stph



Standard Features

  • Belt scrapers (twin-edge) & tensioning system: patented
  • Belt splice: vulcanized
  • Cable slack & tension detection
  • Contactors: IEC
  • Electrical cable harness pulley: UHMW
  • Emergency braking system
  • Gear reducers: CLASS 2
  • Hydraulic cylinders: single stage
  • Idlers: CEMA C
  • In-line swing axle
  • Inductive proximity sensors
  • INOVUS automation technology
  • LES: patented
  • Limit switches: NEMA 4
  • PLC: MicroLogix 1400
  • Program: windrow auto mode
  • Pulleys: mine duty
  • Push button control
  • Safety guarding
  • Side guide rollers: UHMW
  • Steel: 60,000 psi
  • Stone box skirting (floating): UHMW
  • Tail pulley access
  • Tail pulley kicker bar
  • Tail undercarriage hinge point
  • Touch screen control
  • Training: onsite
  • Transport auxiliary axle
  • Transport flip box
  • Transport mobility
  • Ultrasonic sensors
  • Variable frequency drive

Optional

  • Anchor pad
  • Colour: custom
  • Contactors & starters: NEMA
  • Dual drive
  • Galvanizing: hot-dip
  • Program package: zero segregation &
  • max pile auto mode
  • Push down axle: patented
  • Quick-release system
  • Receiving chute: custom
  • Tow hitch
  • Transport landing legs: hydraulic
  • Transport landing legs: regular
  • Wire remote touch screen: dual
  • Wire remote touch screen: regular
  • Wireless remote control

Specialty Features

  • Belt alignment sensor
  • Belt covers: patented
  • Belt scale: mechanical
  • Belt scrapers: Martin
  • Discharge spout: Telescoping
  • Mobile track unit
  • Mobile truck attachment
  • Platform
  • Safety pull chord
  • Spray bar
  • Walkway
  • Zero speed sensor
