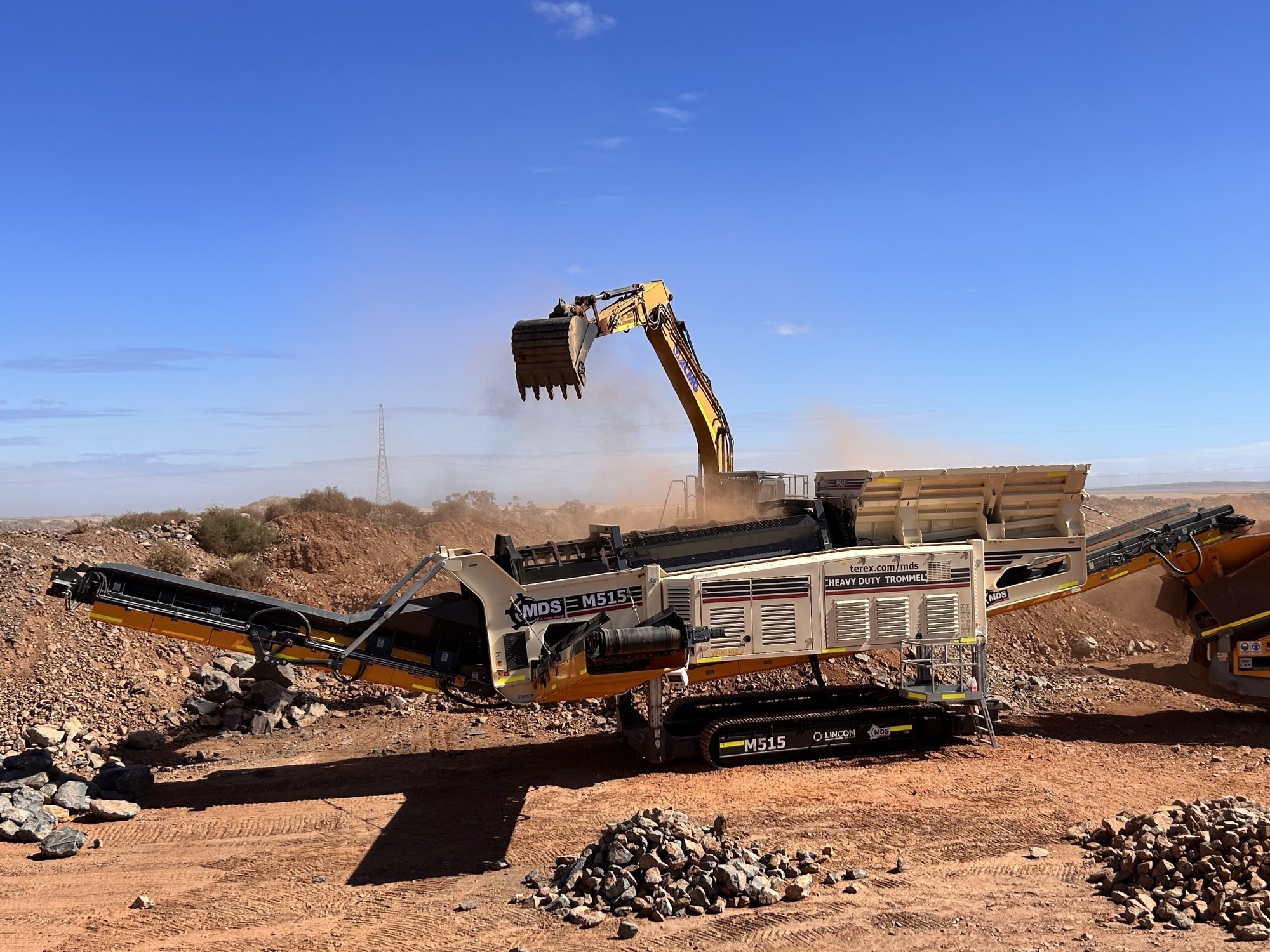

MDS Mobile Track Trommel M515

The MDS M515 is a heavy-duty, high-capacity trommel screen engineered for the most demanding material processing operations. Capable of handling oversized rock up to 800mm (32”), it is ideally suited for robust tasks such as handling rip-rap, armour stone, and overburden in quarry or demolition sites.

As the flagship model in the MDS lineup, the M515 is designed to deliver maximum efficiency, mobility, and throughput, even in the harshest environments.

Features & benefits:

  • Handles rocks up to 800mm (32”)

  • 5.5m heavy-duty drum with welded or changeable screens

  • Hydraulic push feeder with 8 strokes/min speed

  • 12.6m³ hopper with optional tipping grid

  • Oversize, mid, and fines conveyors with high discharge heights

  • CAT diesel engine (up to 131.4HP) with electronic control system

  • Four hydraulic jack legs for transport and stockpile adjustment

  • Track-mounted for all-terrain mobility

  • Optional drum cleaner for sticky material
