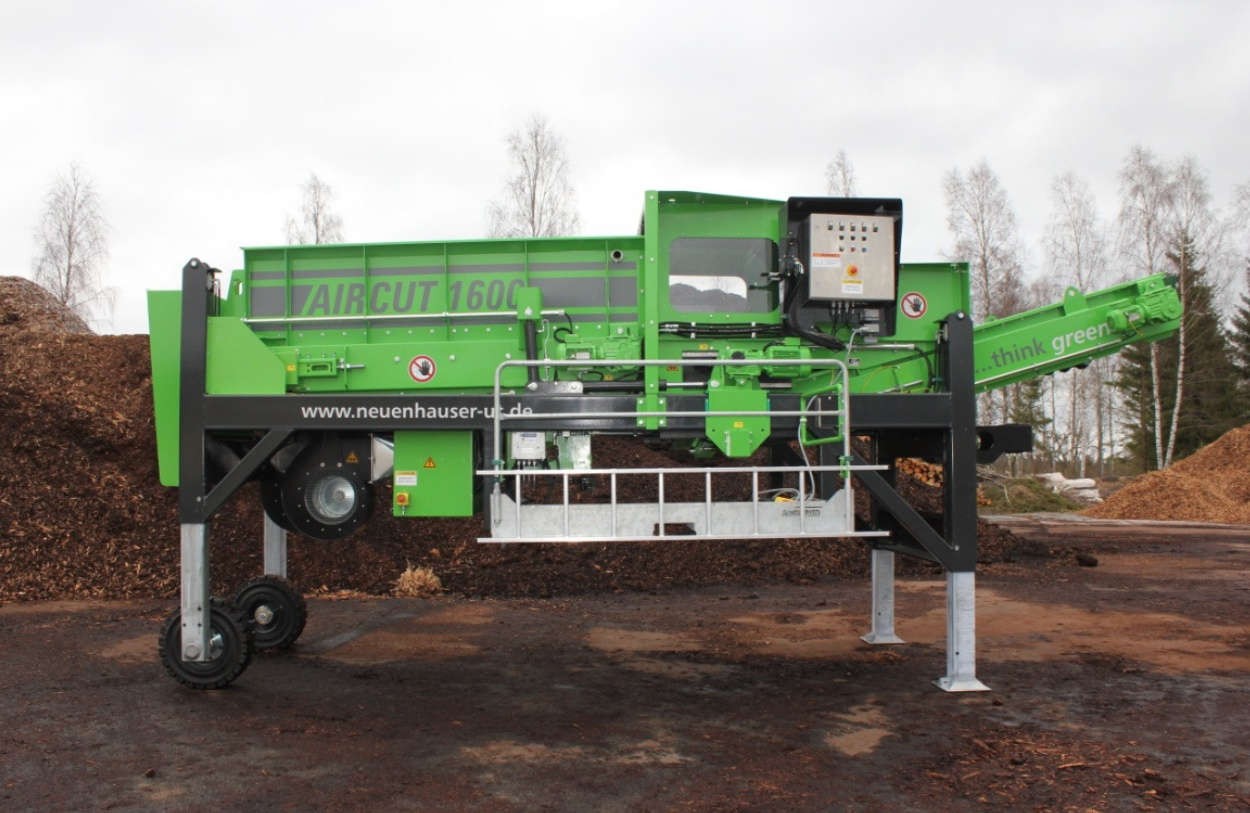

The AIRCUT 1600 is the latest development by Neuenhauser Umwelttechnik. It is a semi-mobile wind shifted that works according to the density/gravity principle.
The AIRCUT 1600 is placed in line with an upstream screening machine. The fine grain in the input material is separated by the screening machine. Then the medium/oversized grain is transferred directly to the 1600mm wide accelerator of the wind shifted. The screened material is accelerated to a set speed and transported to the ejection edge. The adjustable air nozzle causes the light weight materials to “float”. A rotating separating drum transports them to the discharge belt. Then the air flow is routed to the expansion room and calmed. Heavy materials will hit the separation drum and find their way into a container placed below the machine. A lateral discharge conveyor belt is available optionally as well.
The machine is electrically powered by 63 Amps mains current or a power generator. One great benefit of the AIRCUT 1600 is that the machine operator can stay on the attached service platform during operation to precisely observe the material flow in the machine through a generously sized sight window. The operator can therefore directly and quickly make all necessary settings of the AIRCUT 1600 to sort the material reliably at high accuracy and separate it cleanly.
The airflow speed at the nozzle, rotating speed of the separation drum and the acceleration conveyor belt is set gradually via frequency inverters. The support feet, the separation drum, the nozzle and acceleration conveyor are positioned with the on board hydraulics and hydraulic cylinders.
Like all machines from Neuenhauser Umwelttechnik, the AIRCUT 1600 is characterised by easy maintenance and convenient operation.
The AIRCUT 1600 is used in many applications:
• Mixed construction wastes
• RDF
• Screen overflows from composting
• Separation of stones from biomass
